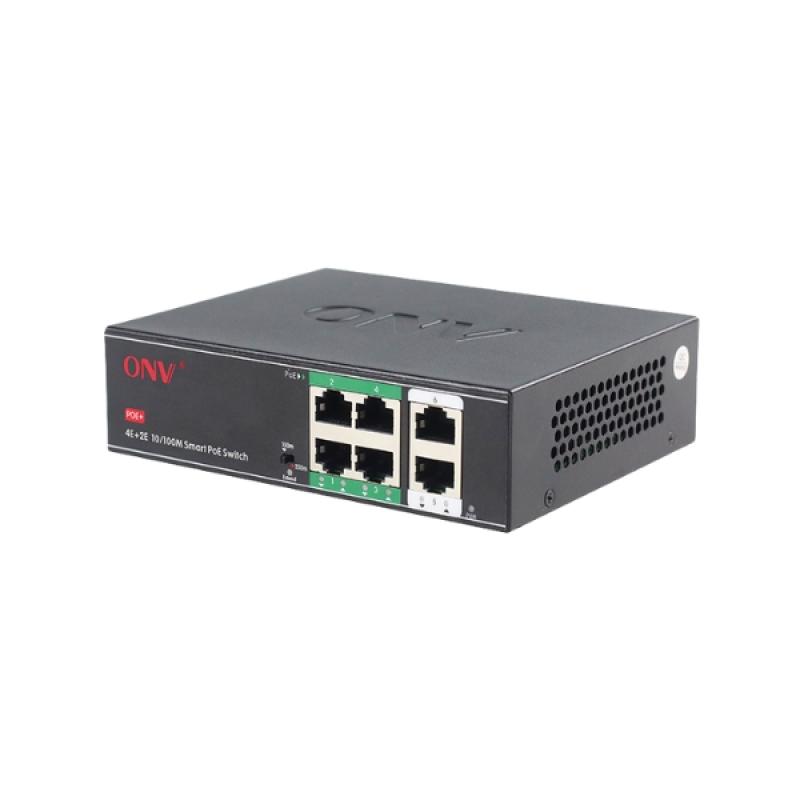

ONV-H1064PSD 6 Port Smart PoE Switch
৳3499 ৳5000
ONV-H3024PFD Gigabit 27-port PoE Switch
৳25500 ৳30000
Chat on WhatsApp
Key Features
- 24x100/1000M PoE Ports
- 2x100/1000M PoE Up-link
- 1SFP Ports
- Lightning protection: 4KV
- Built-in 250 W power supply
- 1-Year Warranty
Categories:
Networking / Network Switch / PoE Switch / ONVBrand:
Non Brand SKU: LNVJV-162প্রযুক্তি যেহেতু দ্রুত পরিবর্তনশীল, তাই যেকোনো সময় মূল্য, স্টক ও ডেলিভারি সম্পর্কিত তথ্য পরিবর্তিত হতে পারে। অর্ডার করার পূর্বে মূল্য, স্টক ও ডেলিভারি সম্পর্কে জানতে যোগাযোগ করুন 01821051012 নাম্বারে।
General
- PoE ports 24*10/100/1000Base-T PoE ports
- Uplink ports 2*10/100/1000Base-T uplink RJ45 ports
- Ethernet Port Port 1-26 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
- Operation TEMP / Humidity -20~55°C, 5%~90% RH non condensing
- Storage TEMP / Humidity -40~80°C, 5%~95% RH non condensing
- Net /Gross Weight 2.0kg/ 2.5kg
- Dimension (L*W*H) 350*215*44mm
- Installation Desktop, Rack mounted
Chip
- Network Protocol IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
- Switching Capacity 54Gbps (non-blocking)
- Forwarding Rate@64byte 40.18Mpps
- MAC 8K
- Buffer Memory 4M
- Jumbo Frame 10K
Power Sypply
- Power Supply Pin 1/2(+) 3/6(-)
- Max Power Per Port 30W, PoE+
- Total PWR / Input Voltage 250W/ (AC100-240V)
- Power Consumption Standby <15W, full load<250W
- Power Supply Built-in power supply, AC100~240V 50-60Hz, 4.1A
Warranty
- Warranty 1-Year

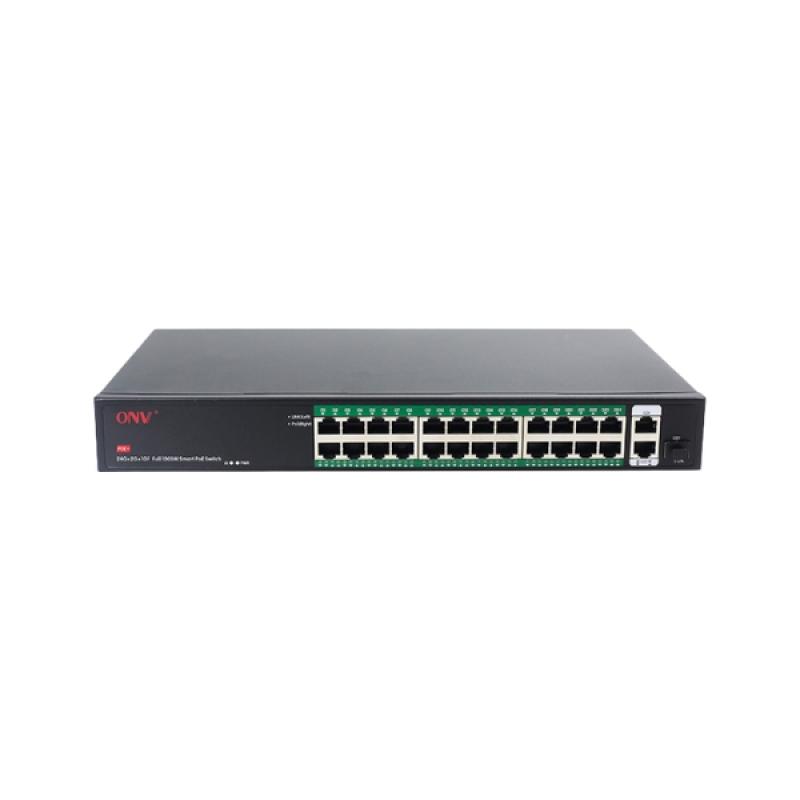

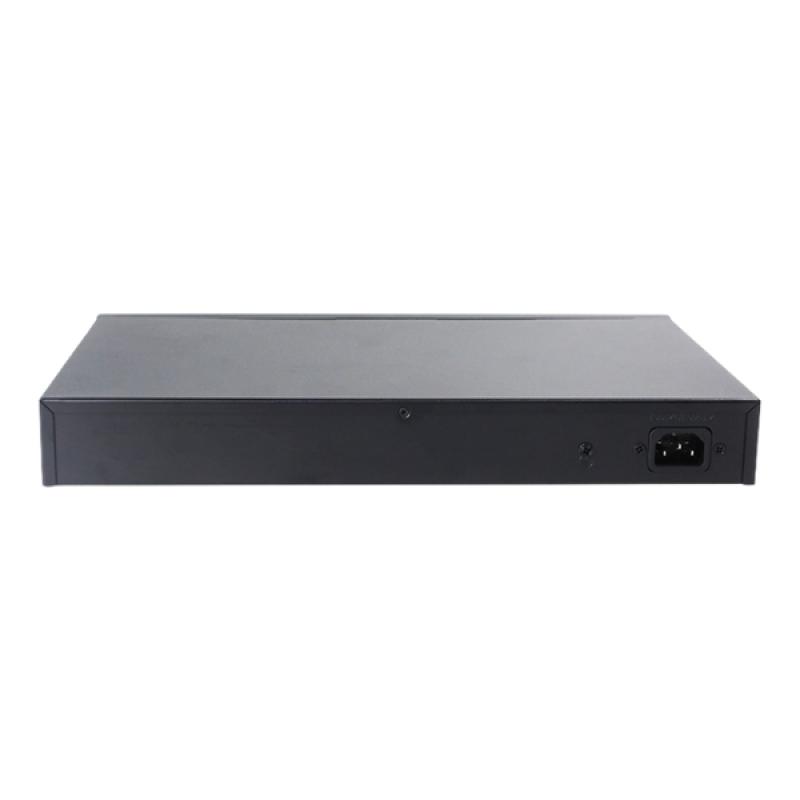

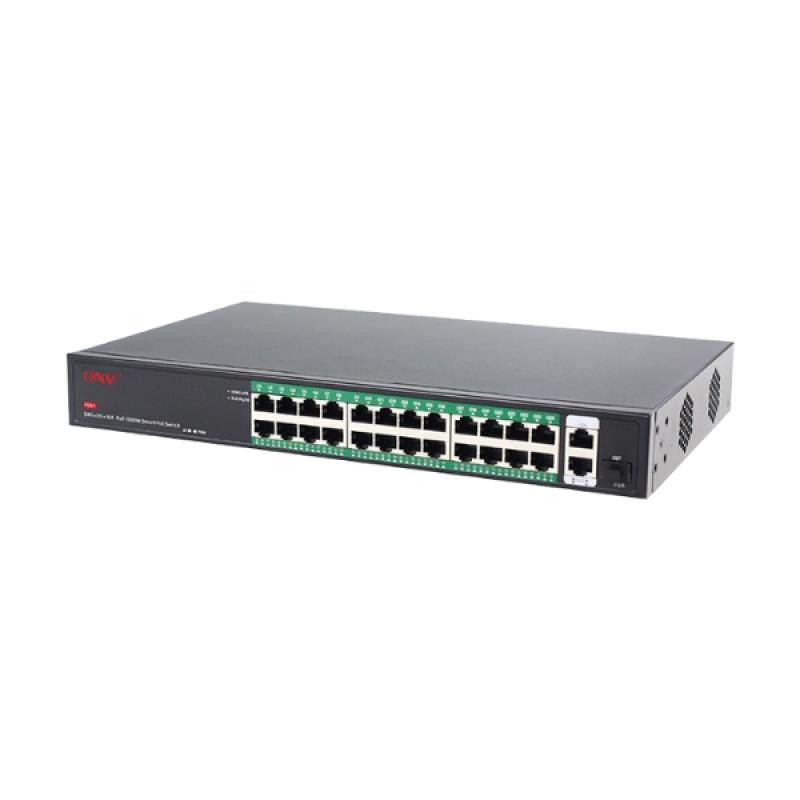

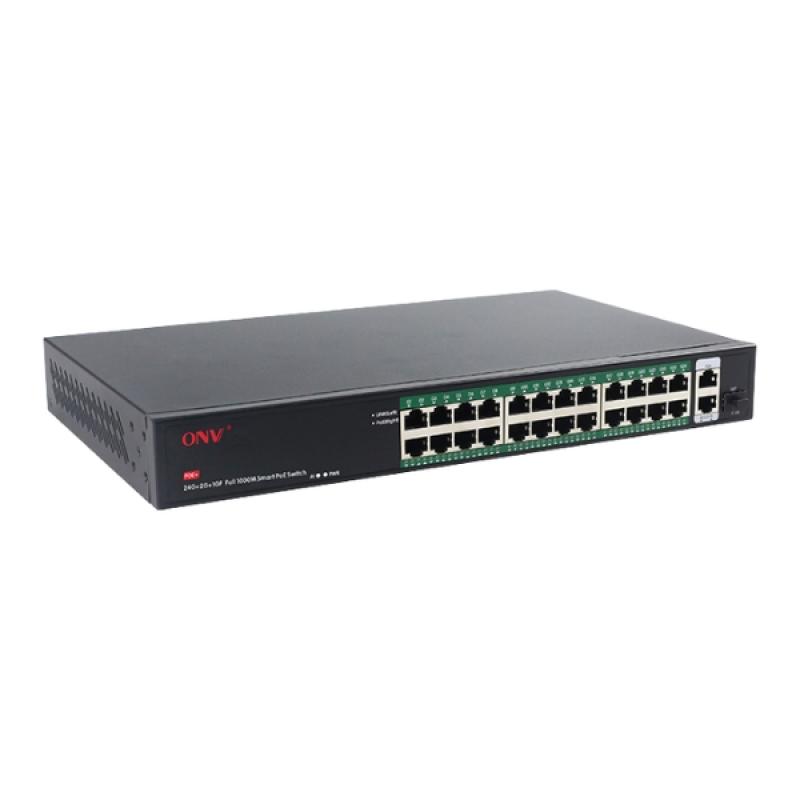

ONV-H3024PFD Gigabit 27-port PoE Switch
The ONV-H3024PFD Gigabit 27-port PoE Switch is designed for large and powerful network setups. It features 24 PoE ports, 2 Gigabit uplink ports, and 1 SFP fiber port. This switch allows you to connect and power many PoE-enabled devices using a single cable for each. It is ideal for big CCTV systems, office networks, hotels, or industrial use. You can easily connect IP cameras, wireless APs, IP phones, and other PoE-supported equipment.
The switch supports IEEE 802.3af and 802.3at standards. Each PoE port can supply up to 30 watts of power. The total PoE budget is large enough to support full load across all ports. You don’t need separate power lines for each device. This helps reduce the number of cables and makes installation easier and cleaner.
This device is plug-and-play. No need to install software or change settings. Just connect the devices, and it starts working. It is easy to use even for people with no networking experience. The switch also supports extended mode. In this mode, it can send both power and data up to 250 meters. This is useful when cameras or other devices are placed far from the switch.
The ONV-H3024PFD is made with a strong metal case. It protects the internal parts and improves heat control. The device also includes built-in surge protection. This helps prevent damage during power spikes or lightning. It keeps your system safe and running smoothly in any environment.
It also has intelligent power management. This feature lets the switch detect the power needs of each device and adjust accordingly. If many devices are connected, the power is shared efficiently. It helps prevent overload and increases system safety. The 2 Gigabit uplink ports allow fast and stable data flow to your router or core network. The SFP port supports fiber connection for longer distances.
The ONV-H3024PFD is built for stable and non-stop performance. Even with all ports in use, the switch runs smoothly. It keeps your network fast and steady all the time. The device is great for large camera systems, smart building setups, or high-demand office use. It is easy to place on a rack with its 1U standard size.
This switch is made for users who need more ports, reliable speed, and simple operation. It handles large traffic, powers many devices, and stays strong every day. It brings better control, cleaner cabling, and easier expansion to your network.
What is the price of ONV-H3024PFD Gigabit 27-port PoE Switch?
The latest price of the ONV-H3024PFD Gigabit 27-port PoE Switch in Bangladesh is 25,500৳. You can buy the ONV-H3024PFD Gigabit 27-port PoE Switch at the best price from our website or visit our office.
